Brake Calipers Explained: Functions, Warning Signs, Types, and Replacement Tips
When it comes to vehicle safety, few systems are as important as your brakes. Every time you press the brake pedal, you’re counting on dozens of components to work in perfect harmony to bring your car to a stop. At the center of this system is a crucial yet often overlooked part: the brake caliper.
In this blog, we’ll walk through the essentials of brake calipers—what they do, how to spot failing calipers, the differences between fixed and floating designs, and how often you should think about replacement.

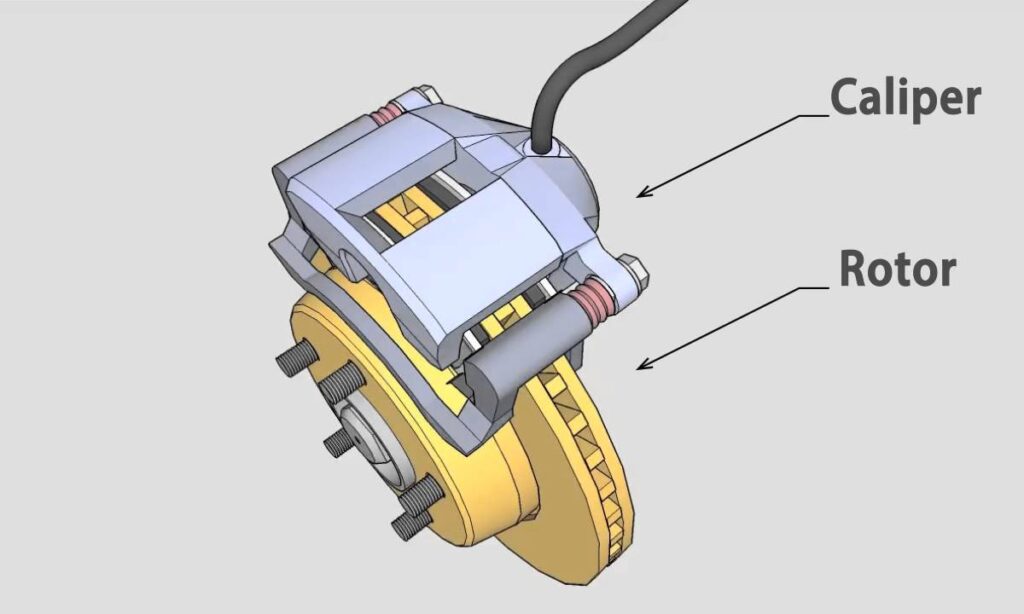

What Do Brake Calipers Do?
Brake calipers act as the “clamp” of the braking system. When you press the brake pedal, hydraulic pressure from brake fluid forces the caliper’s pistons to squeeze the brake pads against the spinning rotor. This friction slows the wheels down and brings your vehicle to a stop.
Without working calipers, even brand-new brake pads and rotors won’t do much good. They’re the bridge between your foot on the pedal and the stopping power your car relies on.
Key functions include:
- Applying consistent pressure for smooth braking.
- Distributing force evenly across the brake pads.
- Holding pads in place so they contact the rotor effectively.
In short, if your brake calipers aren’t functioning properly, your braking system is compromised—and so is your safety.
Signs of Failing Brake Calipers
Like any other component, brake calipers can wear out or fail over time. Here are some red flags that shouldn’t be ignored:
- Pulling to One Side – If your car drifts left or right when braking, one caliper may be sticking or applying uneven pressure.
- Uneven Pad Wear – Calipers that don’t release properly can cause one pad to wear faster than the other.
- Leaking Brake Fluid – Calipers rely on hydraulic pressure. If seals wear out, fluid leaks reduce braking efficiency and may trigger warning lights.
- Spongy or Soft Pedal – A failing caliper can make your pedal feel less firm than usual.
- Burning Smell or Smoke – Overheated calipers can generate excessive friction, causing smells or visible smoke from the wheel area.
If you notice any of these issues, it’s best to have your braking system inspected immediately. Ignoring caliper problems can damage rotors, pads, and even your vehicle’s suspension.

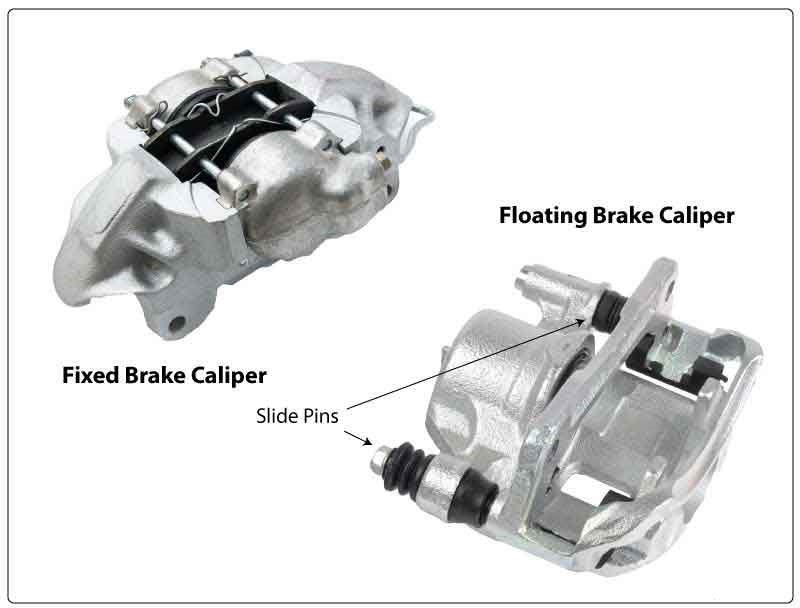

Fixed vs. Floating Brake Calipers: What’s the Difference?
Not all brake calipers are the same. The two most common designs—fixed and floating (or sliding)—each come with pros and cons.
- Fixed Calipers
- Mounted in one position with pistons on both sides of the rotor.
- Provide stronger and more consistent braking.
- Commonly found in performance and luxury vehicles.
- More expensive and complex to maintain.
- Floating (Sliding) Calipers
- Use one or two pistons on one side, sliding back and forth to press
pads against the rotor.
- Lighter, simpler, and more cost-effective.
- Common in most everyday vehicles.
- Can be more prone to sticking if not maintained.
Which is better? It depends on your needs. Daily drivers will often do well with floating calipers, while high-performance vehicles benefit from the stability and stopping power of fixed calipers.

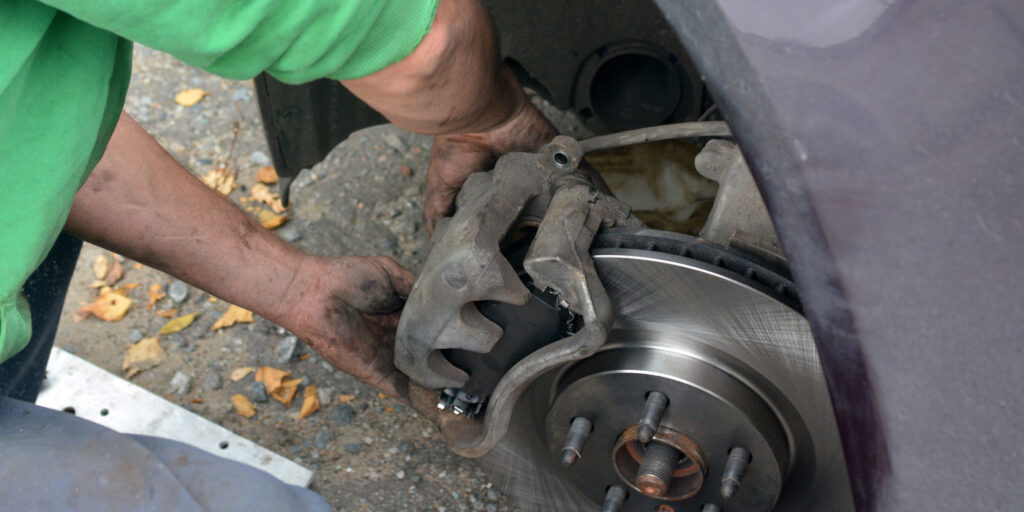

How Often Should Brake Calipers Be Replaced?
Unlike brake pads or rotors, calipers don’t have a set replacement interval. Their lifespan depends on driving habits, climate, and maintenance. In general:
- Lifespan: Calipers can last anywhere between 120,000 km to the life of the vehicle with proper care.
- When to Replace: Replace them if they seize, leak fluid, or show signs of corrosion that affect performance.
- Inspection Tip: During routine brake service (pad or rotor changes), always inspect the calipers for wear, leaks, or damage.
Regular cleaning and brake fluid flushes can extend caliper life, especially in regions where winter salt accelerates rust and corrosion.
Final Thoughts
Brake calipers may not be the most talked-about part of your vehicle, but they’re critical for safe, reliable braking. Knowing how they work, recognizing the warning signs of failure, understanding the difference between fixed and floating designs, and replacing them at the right time can save you from costly repairs and, more importantly, keep you safe on the road.
